WCJC nickle plated bolted brass lug for ABC cable and wire terminal connector
- Model Number:
- WCJC
WCJC nickle plated bolted brass lug for ABC cable and wire terminal connector
Description：
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.
Characteristics:
Material: Brass
Suface treatment: Nickle plated
Products property: It is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment. They can be reused many times.

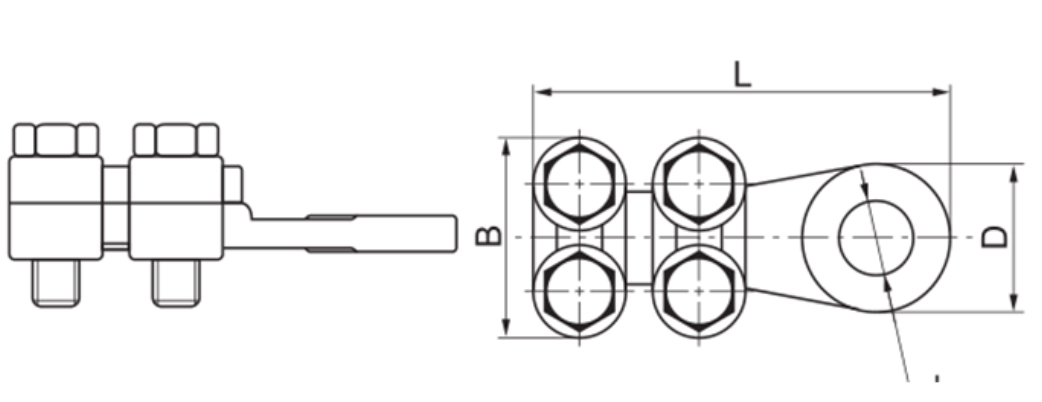

| Modle | Dimension(mm) | |||
| L | D | B | φ | |
| WCJC 16-8 | 37 | 16 | 21.5 | 8 |
| WCJC 25-35-10 | 48 | 22 | 23 | 11 |
| WCJC 50-70-10 | 61 | 23 | 30 | 11 |
| WCJC 70-95-12 | 66.5 | 27 | 33 | 13 |
| WCJC 120-150-14 | 73 | 32 | 36 | 15 |
| WCJC 185-240-16 | 91 | 39 | 46 | 17 |
| WCJC 300-20 | 105 | 45.5 | 55 | 21 |
| WCJC 400-22 | 122 | 50 | 60 | 23 |
