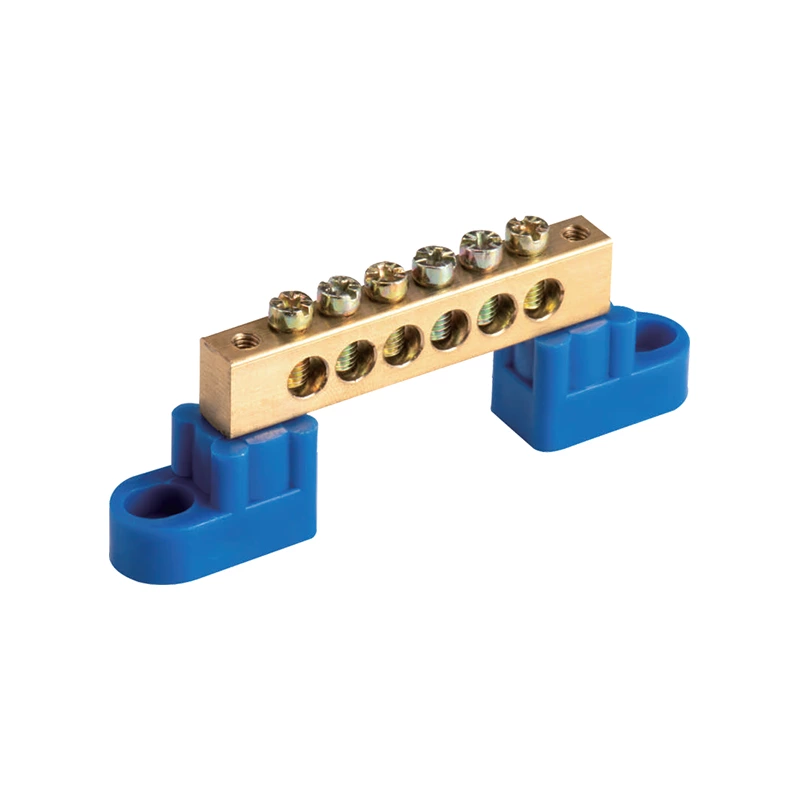

Copper Terminal Blocks T003 Series Best Quality Screw distribution block with brass
- Model Number:
- Terminal block T003
- Conductor Range:
- 58.5mm-178.5mm
- Standard:
- IEC 60947-7-1
- Bolt:
- Zinc Coated Steel
- Voltage:
- 500V
- Tightening Torque:
- 2-3NM
- Operating Temperature:
- -40～+85℃
- Color:
- Gray-Blue
- Packaging Details:
- Carton
- Certification:
- CE
Terminal block
| Material | PA66 |
| Grade of flame retardant | VO |
| Metal Meterial | Brass nickel plated |
Features
Screw Barrier Terminal Block.
Each of terminals is insulated from the next, prevent circuit in disorder.
The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
Used for wires connecting of home appliances, electronic circuits, machines, etc.
With Blue Neutral and Green PE type
Catalog Number
T003
Certifications
Material
| Spec | 6X9/8X12 |
| Screws | M4 M5 |
| Diameter | 5.2/6.0 |
| Housing | PA66/V-0 |
| Cover | PC |
| Conductor | Tin-Coated Brass |

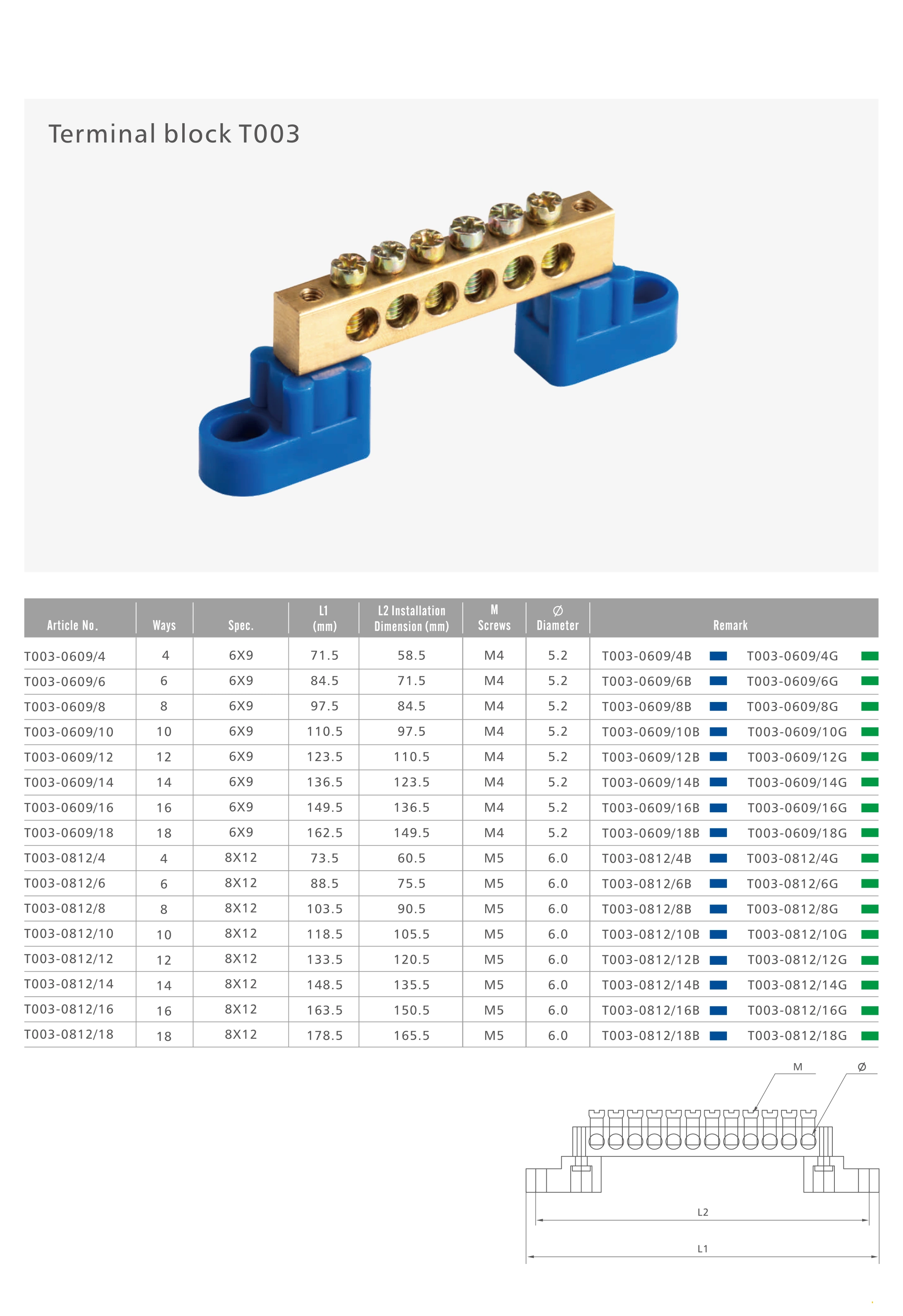

| Ways | Conductor T003 | L1(mm) | L2(mm) | spec | Screws | Diameter |
| 4 | 0609/4 0812/4 | 71.5/73.5 | 58.5/60.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 6 | 0609/6 0812/6 | 84.5/88.5 | 71.5/75.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 8 | 0609/8 0812/8 | 97.5/103.5 | 84.5/90.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 10 | 0609/10 0812/10 | 110.5/118.5 | 97.5/105.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 12 | 0609/12 0812/12 | 123.5/133.5 | 110.5/120.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 14 | 0609/14 0812/14 | 136.5/148.5 | 123.5/135.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 16 | 0609/16 0812/16 | 149.5/163.5 | 136.5/150.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 18 | 0609/18 0812/18 | 162.5/178.5 | 149.5/165.5 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
Electrical Date
| Standards | IEC 60947-7-1 |
| Voltage(V) | 500 |
| Current(A) | 125 |
| Icw(KA) | 4.5 |
| Ipk(KA) | 20 |
Diagrams
