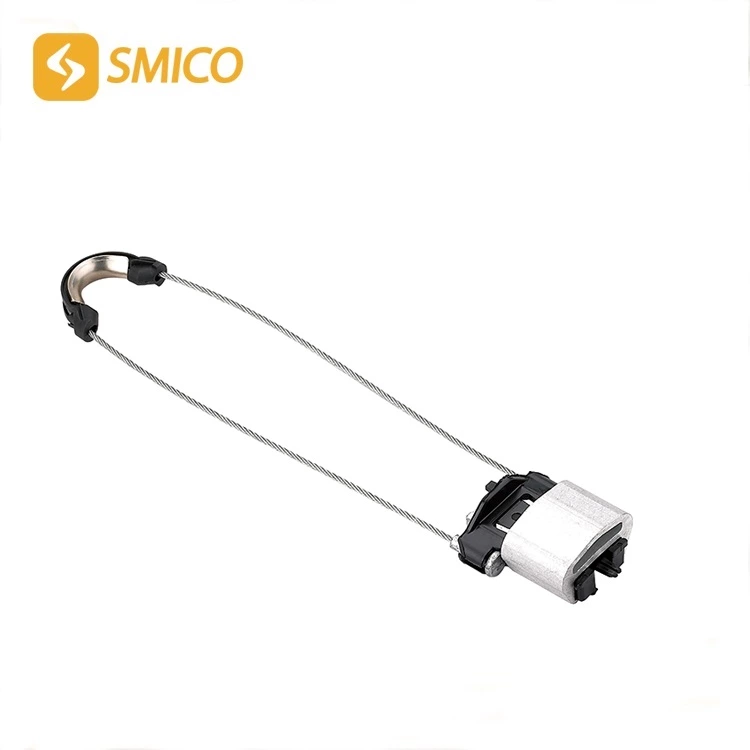

PAM-06 high strength aluminum alloy anchoring clamp
- Conductor Range:
- 16-20mm²
- Standard:
- NFC 33041 33042, EN 50483-3, IEC 61284
- Supply Ability:
- 500000/month
PAM-06 high strength aluminum alloy anchoring clamp
Product information:

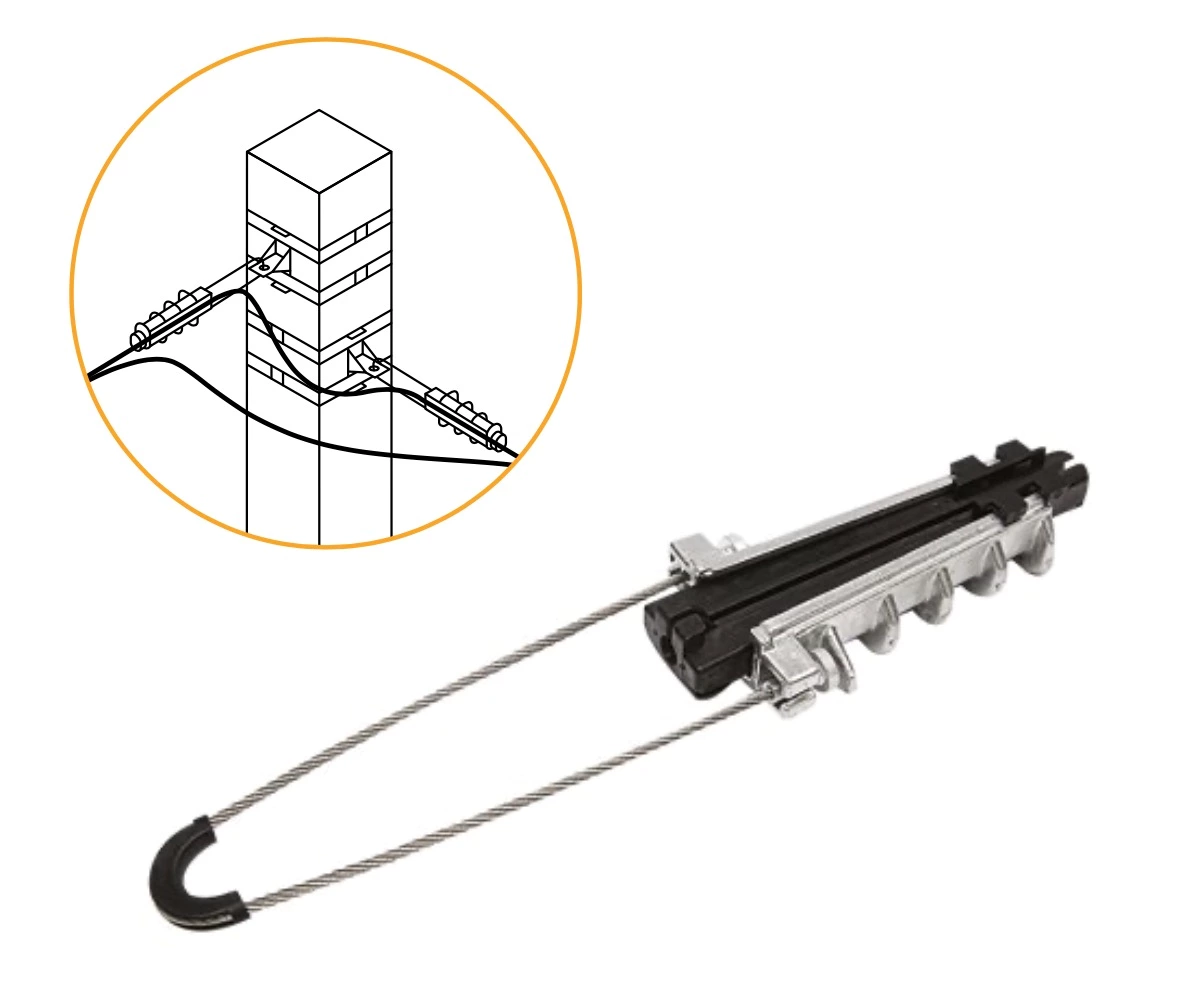

Anchoring clamp DR1500.1 is wedge type, designed to anchor insulated messenger, in LV ABC insulated overhead systems, up to 1 KV.
Applied on cable from 50-70 mm2 in main electric connections.
Anchor clamp DR1500.1 is made of stainless steel wire bail, UV resistant, FG reinforced polymers, high strength aluminium.
Tension clamp DR1500.1 is self-adjusting compared to bolted clamps, this simplify the installation process, and allows installations of closed drive hooks, pole brackets and other low voltage cable brackets and other pole fittings and hardware.
| Modle | Cross-section（mm²） |
| PAM-06 | 16-20 |
| PAM-07 | 16-25 |
| PAM-08 | 16-25 |
| DR1400 | 25-35 |
| DR1500 | 35-70 |
| DR1600 | 35-70 |
| DR1700 | 70-150 |
| JBG-1 | 35-70 |
| JBG-2 | 50-95 |
