GSD7666- DG2 Single-phase DIN-rail Prepayment Energy Meter

Details

GSD7666- DG2 is an advanced & compact DIN-rail energy meter with split-type structure & Class 1 accuracy.Complying with STS standard, the meter is suitable for commercial & residential customers and has outstanding tamper detection features. It could make communication with the external Customer Interface Unit(CIU) by M-bus, PLC or RF, and its installation requirements are also optional.

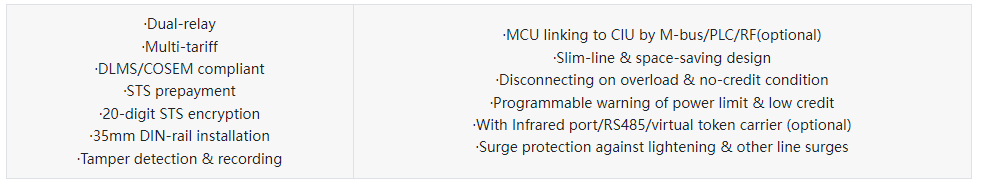

Main Features

Split-type Surcture for Anti-tampering Portection

The meter consists of two parts, the MCU (Metering & Control Unit) and CIU (Customer Interface Unit),which could be linked via communication modes of M-bus, PLC or RF based on requirements.
The CIU is installed inside the customer’s home for inputting prepayment token and searching for information, while the MCU is normally installed in a meter enclosure away from the customer’s home.
