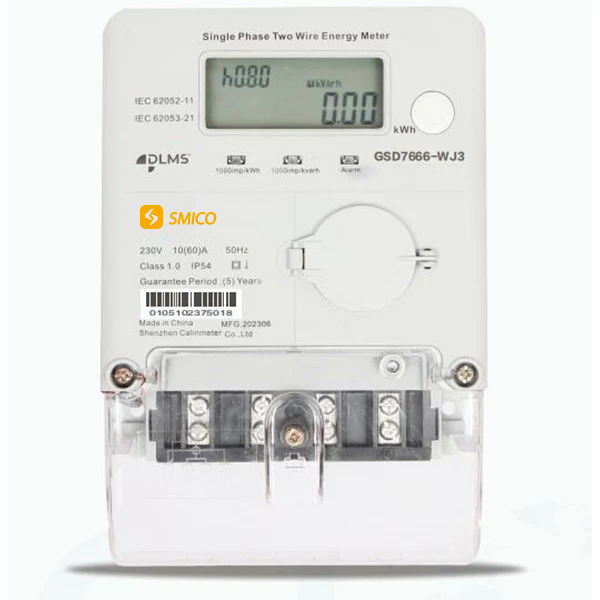

GSD7666-WJ3 Single-phase Smart Energy Meter

Details

GSD7666-WJ3 is an advanced single-phase multi-function smart meter used to measure energy accurately for commercial & residential customers, with a wide range of functions, smart measurement & flexible communication modules for remote reading & management.
It could be used for either prepayment (compliant with STS standard) or postpayment applications (optional),with outstanding anti-tamper functions like detection of terminal cover opening to help utilities in revenueprotection.It could communicate with CIU or DCU (Data Concentrator Unit for AMR/AMI System) by different communication modes like PLC/GPRS/3G/4G/RF based on requirements.

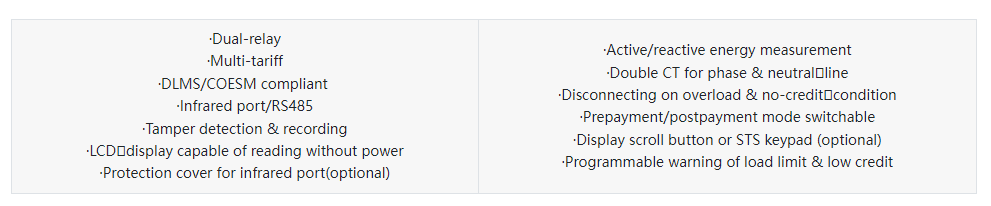

Main Features

Split-type Surcture for Anti-tampering Portection

The CIU(Customer Interface Unit) is optional, linking to the MCU(Metering & Control Unit) with communication modes of M-bus, PLC or RF based on requirements.
The CIU is installed inside the customer’s home for inputting prepayment token and searching for information, while the MCU is normally installed in a meter enclosure away from the customer’s home.
