SMICO GST7666-CT1 Three-phase CT-connection Smart Energy Meter

Details

GST7666-CT1 is a CT(current transformer)-connection three- phase multi-function energy meter with modular design. The meter is ideal for large residential homes and small commercial & industrial customers, with exchangeable communication modules supporting PLC or RF and complying with DLMS communication protocol. The built-in tariff structure supports measurement of active energy, reactive energy & apparent energy

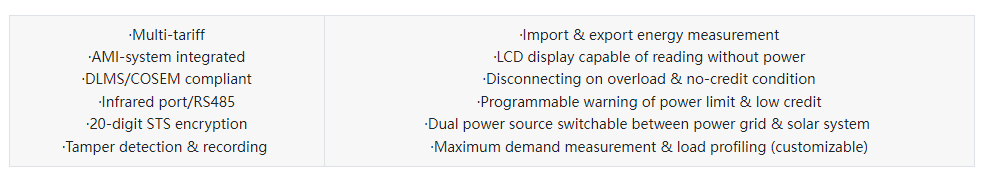

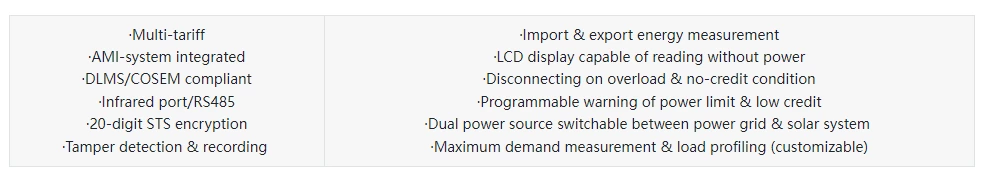

Main Features

Split-type Surcture for Anti-tampering Portection

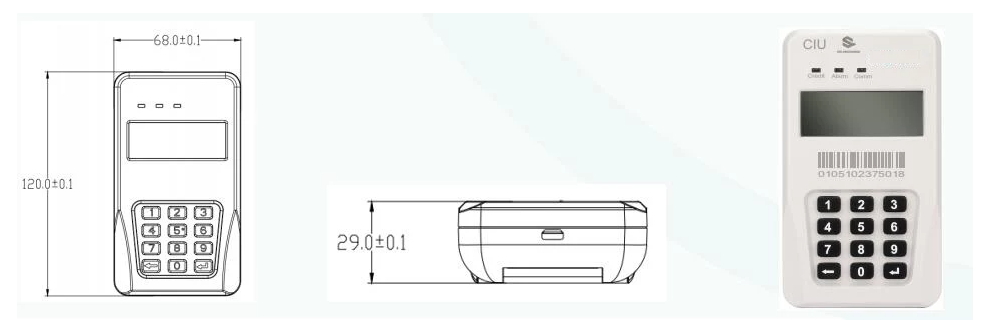

The meter consists of two parts, the MCU (Metering & Control Unit) and CIU (Customer Interface Unit), which could be linked via communication modes of M-bus, PLC or RF based on requirements.The CIU is installed inside the customer’s home for inputting prepayment token and searching for information, while the MCU is normally installed in a meter enclosure away from the customer’s home.
