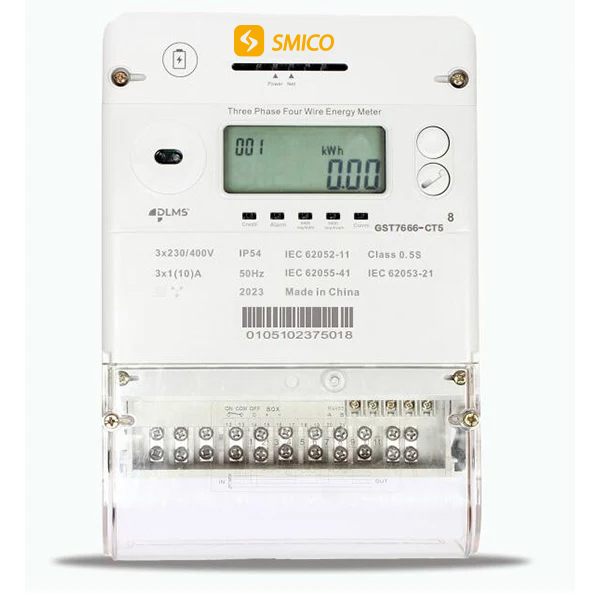

SMICO GST7666-CT5 Three-phase CT-connection Smart Energy Meter

Details

GST7666-CT5 is a CT(current transformer)-connection three-phase smart energy meter designed to meet the energy metering requirements of large power customers, suitable for applications of industrial users & distribution transformers. It complies with IEC standard of  Class 0.5S high accuracy metering, and its communication compliant with DLMS/COSEM protocol.

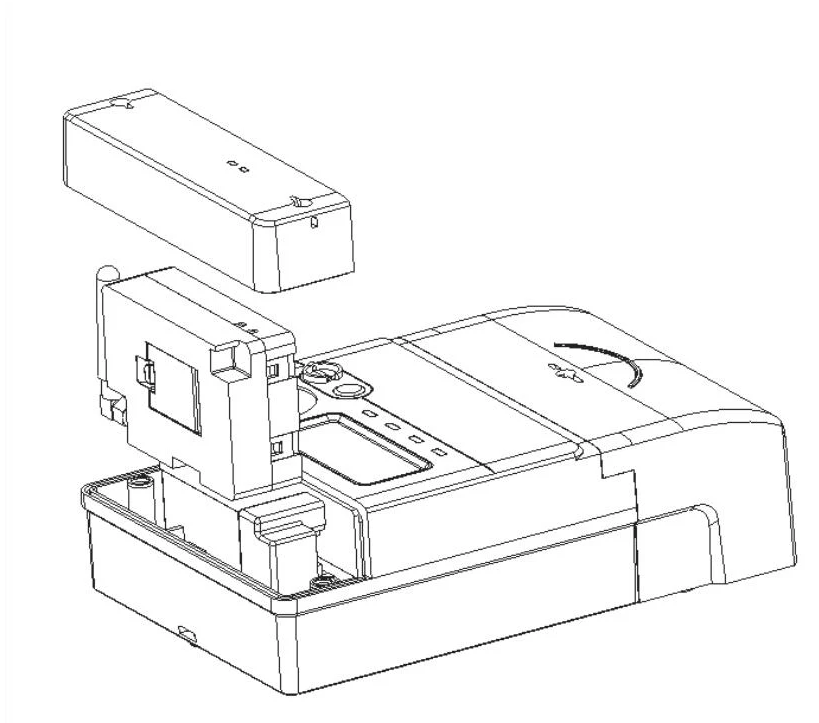

Modular Design

GST7666-CT5 adopts modular design, with exchangeable communication modules supporting PLC, RF or GPRS communication optionally based on requirements.

Main Features

·CT-connection
·DLMS/COSEM compliant
·AMI-system integrated
·Plug & play PLC/RF/GPRS module
·Remote monitoring & remote controlling
·Programmable value of power limit, overcurrent & overvoltage
·Tamper detection & recording of events such as cover opening,reverse connection & power off
·Maximum demand measurement & load profiling
·Replaceable battery
·Small-size modern design
