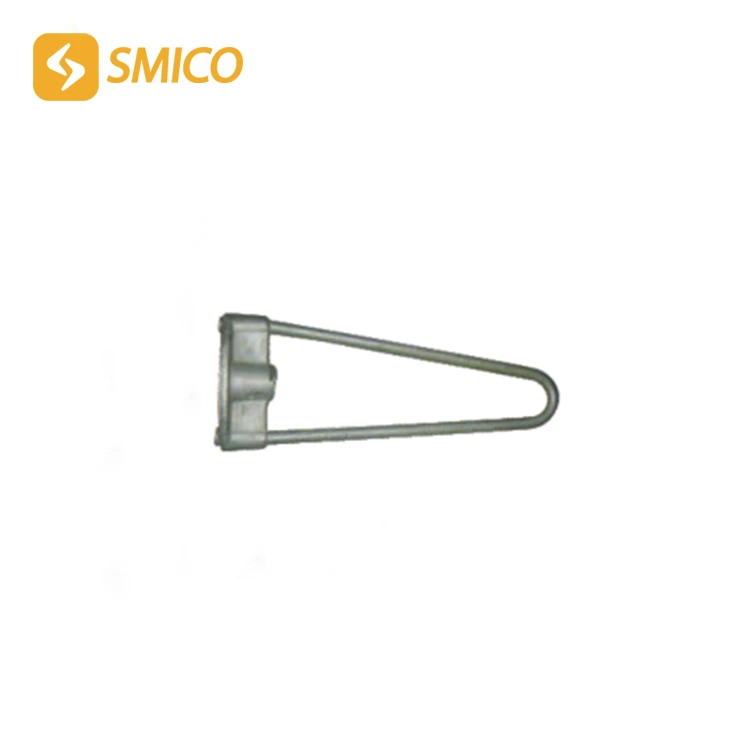

High galvanized stainless steel stay rod pull wires accessories

High galvanized stainless steel stay rod pull wires accessories

Description:

SMICO‘s stay rod pull wires accessories is used for connecting the stay wire to the ground anchor. It is also known as the stay set  It ensures that the wire is firmly rooted to the ground and everything remains stable.there are two types of these stay rods that you will find in the market. These are the bow stay rod and the tubular stay rod. The difference between these two types of powerline accessories is based on their designs.tubular stay rod is adjustable through its turnbuckle. On the other hand, bow type stay rod is further divided into different categories which include stay thimble, stay rod and stay plate.when it comes to the material of make, stay rods are made of high-grade galvanized stainless steel. We prefer this material due to its immense physical strength. The stay rod also has a high tensile strength which keeps it intact from mechanical forces.the steel is galvanized hence is free from rust and corrosion. The pole line accessory cannot be damaged by various elements.

Advantages：

• Adjustable through its turnbuckle.
• The steel is galvanized hence is free from rust and corrosion.

Also known as stay set or stay bar, stay rod is an important overhead line equipment that you will find in major telecommunication and power installations.

You may need it regardless of the scope of your project.

Are you looking for the best stay rods for sale? Then you are in the right place.

Let’s get to that.

What is a stay rod?

A stay rod is a hardened piece of metal rod that is used for sustaining the mechanical load of the stay wires.

Stay rods are usually connected to the stay wire for the electric pole, which is then connected to the ground anchor.

Given the immense mechanical force that a stay wire is subjected through, the rod must be strong enough to provide a strong and reliable connection.

Stay rods come in different designs, lengths, quality, and even strength. You should check out on all the listed specifications to ensure that the rod will execute its functions effectively.

What are the uses of stay rods ?

The most common application of the stay rods is in the electrical industry. Most electrical installations have stay wires. This makes it necessary for one to use stay rods to complete the connections to the ground.

Telecommunication structures and installations also heavily depend on the stay rods for the same purpose. Most of them also have stay wires that run from the pole to the ground. This automatically makes it necessary for stay rods o be used.


What are the types of stay rods ?

●Bow type stay rods

-Stay bow; made of steel and features hot-dip gap

-Stay thimble. Usually made of carbon steel and alloy steel which are known for their extra strength and durability. Stay thimbles are preferred for extreme conditions.

-Stay rod. The most popular under this class. Is made of cast steel, carbon steel and cast iron hence is very flexible. The most common finishes are zinc plating and hot deep galvanization

-Stay plate. Made of mild steel and is hot-deep galvanized for the smooth finishing and protection.

●Tubular types stay rods.

-Turnbuckle. Under turnbuckle, we still have different varieties of rods They are eye/eye type, hook/hook/ type, and hook/eye. As you can see, they are named according to their points of connection.

Turnbuckle stay rods are galvanized and electroplated for strength and protection.

-Eye rod. Most eye rods in the market are made of steel and electroplated or hot dip galvanized for strength and protection.

It is known as the eye rod because one end of the rod has an ‘eye’ which is a hole.

Stay rod materials

These include plain steel, cast iron steel, carbon steel, alloy steel among others.

Different types of coatings are used on the stay rods to protect them from corrosion and rusting. These finishes include hot-dip galvanization and electroplating.

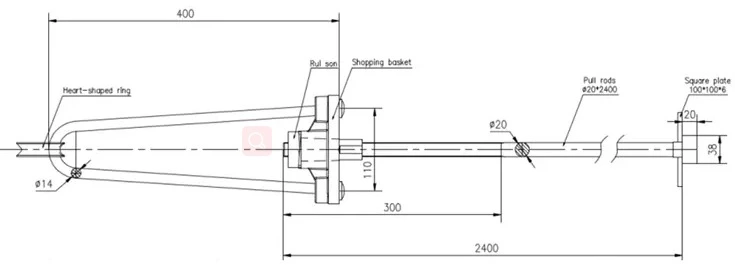

What is the right dimension of the stay rods?

Include diameter length, thickness, and weight.

The dimensions of the stay rods that you choose will depend on the area of application.

How to manufacture a stay rod?

The stay rod is drop forged with heat which imparts uniformly to the texture. After polishing, the stay rod is able to bear high temperature and pressure.

The hot dip galvanized for the stay set is according to ISO 1461. After hot dip galvanized, all the stay set surface are bright and smooth. Without ribs and lumps.

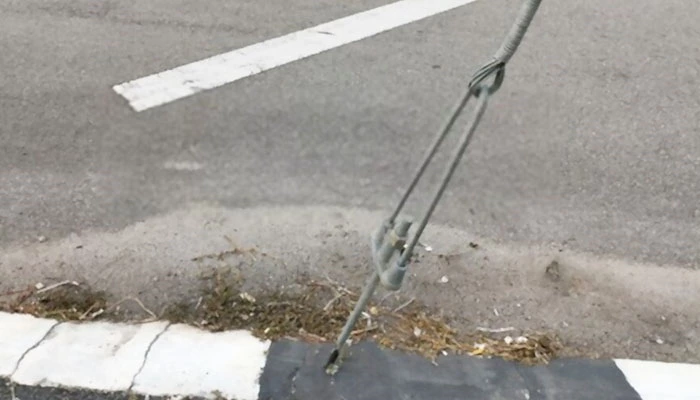

How to install a stay rod assembly?

There are different ways of installing stay rods to make up a complete stay rod assembly. The mode of installation will depend on the area of application.

During the installation process, a small part of the rod is usually left outside while the rest of the body is buried under the ground.

Stay set for pole is also expected to align at an angle of 45 degrees while facing the horizon.

When installing a stay bow, ensure that it goes through the screw to allow the ratchet nuts to connect. The process should create a perfect match with the stay wire installation.
