12kv Epoxy Resin Contact Box SO7-12

The contactor box is an electrical connection device widely used in high-voltage circuits. It consists of a main body box, terminals, contacts, etc., which can effectively connect the power supply to the electrical equipment.
The contactor box has a wide range of uses and is widely used in various industries such as lighting, electrical appliances, machinery, communications, and transportation. It is especially suitable for occasions where multiple electrical connections with multiple devices are required.

1. Installation method: panel installation
2. Rated voltage: 12KV
3. Model: SO7-12
4. Wiring method: fixed rail
5. Insulation material: epoxy resin
6. Protection level: IP20
7. Number of connectors: 12
8. Color: red

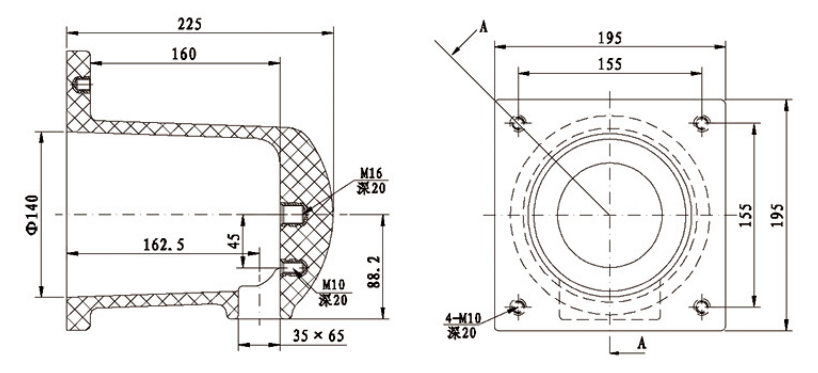

9. Dimensions: 195mm x 195mm x 225mm
10. Weight: about 0.14kg
