12KV Red Epoxy Resin Wall Bushing SO6-12
- Model Number:
- SO6-12-170×230
- Brand:
- SMICO
- Voltage:
- 12KV
- Color:
- RED
Our insulators are designed with durability in mind, ensuring a long service life in even the most demanding environments. They are easy to install and maintain, featuring a user-friendly design and low-maintenance construction.
At our facility, we utilize the latest manufacturing technologies and processes to produce high-quality insulators that meet or exceed customer expectations. Our insulators are widely used in high-voltage cabinets for substation monitoring, power distribution networks, and other industrial applications.
1. Rated voltage: 12KV
2. Rated current: 630A
3. Rated frequency: 50Hz
4. Lightning impulse voltage: 75KV
5. Peak closing current: 31.5KA
6. Peak discharge current: 80KA
7. Insulation level: Class A

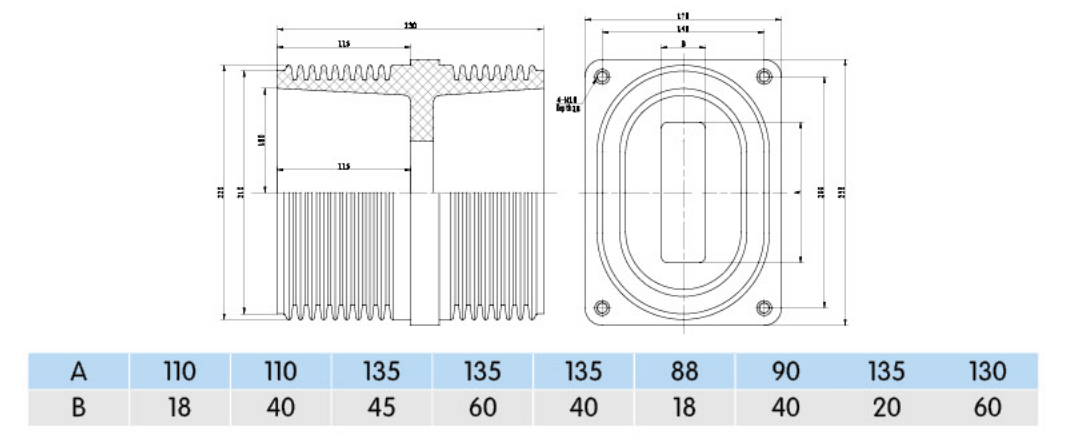

8. External insulation height: 170mm
9. External insulation width: 230mm
10. Hook center distance: None
11. Weight: 9.5kg
