12kv Switch Cabinet Center Cabinet High Voltage Contact Box SO1-12-150

The contactor box is an electrical connection device widely used in high-voltage circuits. It consists of a main body box, terminals, contacts, etc., which can effectively connect the power supply to the electrical equipment.
The contactor box has a wide range of uses and is widely used in various industries such as lighting, electrical appliances, machinery, communications, and transportation. It is especially suitable for occasions where multiple electrical connections with multiple devices are required.

Product model: SO1-12-150

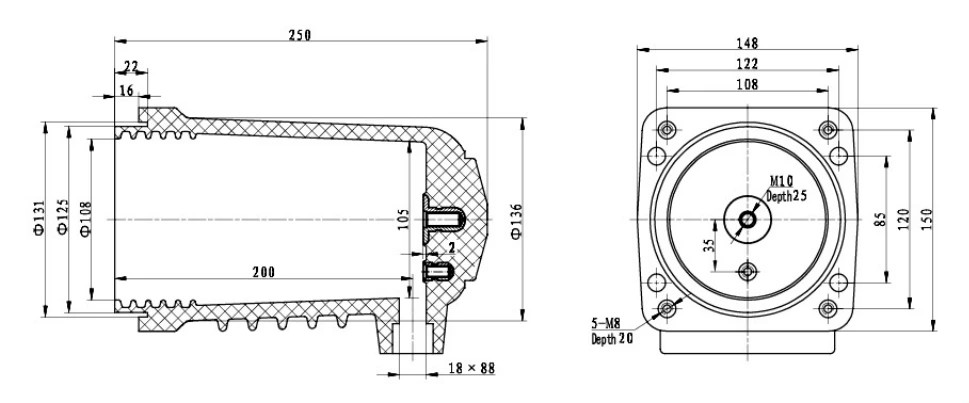

Dimensions: 150*148*250
Rated voltage: 12KV
Rated current: 630-1250A
Product material: epoxy resin shell + copper alloy terminal + stainless steel contact
Product weight: 0.560kg
Ambient temperature: -25℃~+55℃
Ambient humidity: Relative humidity ≤95% (25℃)
