24KV Epoxy Resin Contact box Insulator Wall Bushing for Switchgear SO2-24

Our insulators are designed with durability in mind, ensuring a long service life in even the most demanding environments. They are easy to install and maintain, featuring a user-friendly design and low-maintenance construction.
At our facility, we utilize the latest manufacturing technologies and processes to produce high-quality insulators that meet or exceed customer expectations. Our insulators are widely used in high-voltage cabinets for substation monitoring, power distribution networks, and other industrial applications.

1. Rated voltage: 24KV
2. Rated current: 200-400A
3. Rated frequency: 50Hz
4. Lightning impulse voltage: 125KV
5. Peak closing current: 12.5KA
6. Peak discharge current: 31.5KA
7. Insulation level: Class A

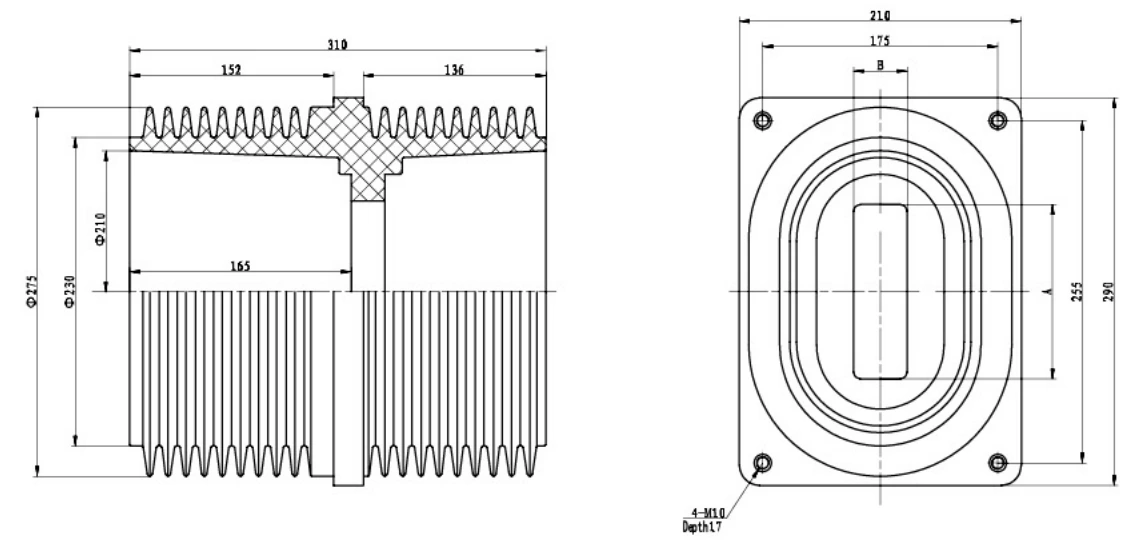

8. External insulation height: 175mm
9. External insulation width: 255mm
10. Hook center distance: 310mm
11. Weight: 12kg
