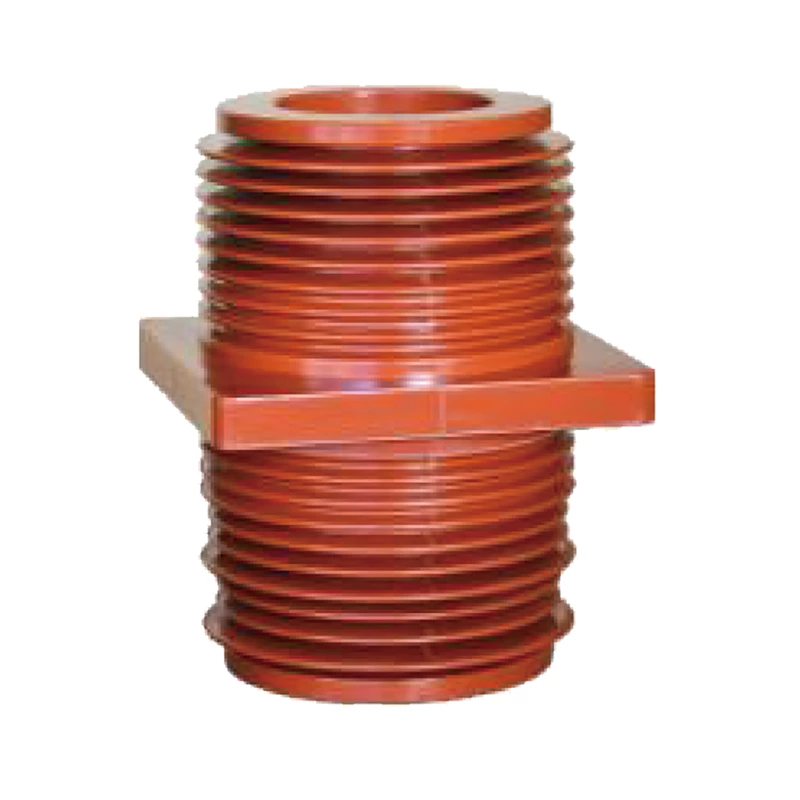

40.5KV High Voltage Cabinet Epoxy Resin Wall Bushing SO3A-40.5

Brand:
SMICO
Voltage:
40.5KV
Color:
RED

Our insulators are designed with durability in mind, ensuring a long service life in even the most demanding environments. They are easy to install and maintain, featuring a user-friendly design and low-maintenance construction.
At our facility, we utilize the latest manufacturing technologies and processes to produce high-quality insulators that meet or exceed customer expectations. Our insulators are widely used in high-voltage cabinets for substation monitoring, power distribution networks, and other industrial applications.

40.5KV High Voltage Cabinet Epoxy Resin Wall Bushing SO3A-40.5

1. Rated voltage: 40.5KV
2. Rated current: 630A
3. Rated frequency: 50Hz
4. Lightning impulse voltage: 185KV 5. Peak closing current: 80KA
6. Peak discharge current: 100KA
7. Insulation level: Class A

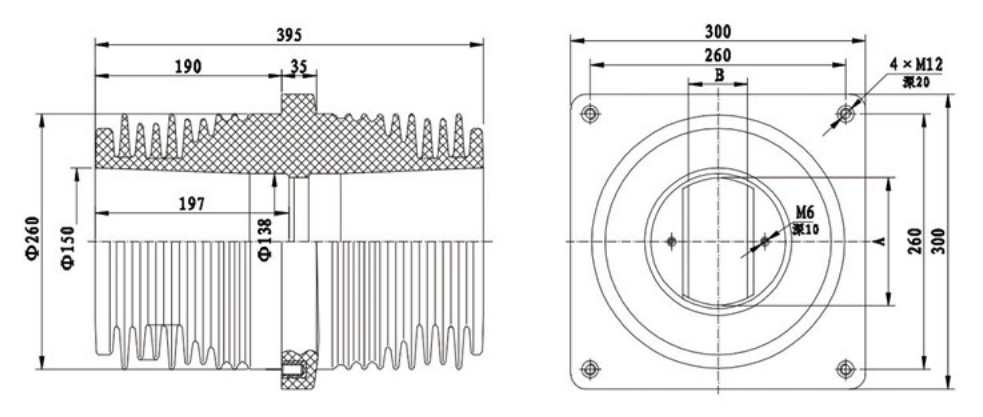

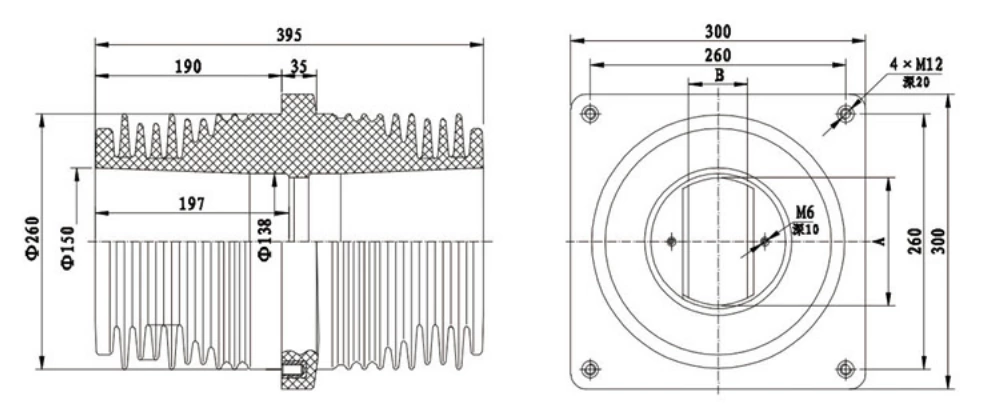

8. External insulation height: 395mm
9. Weight: 28kg
