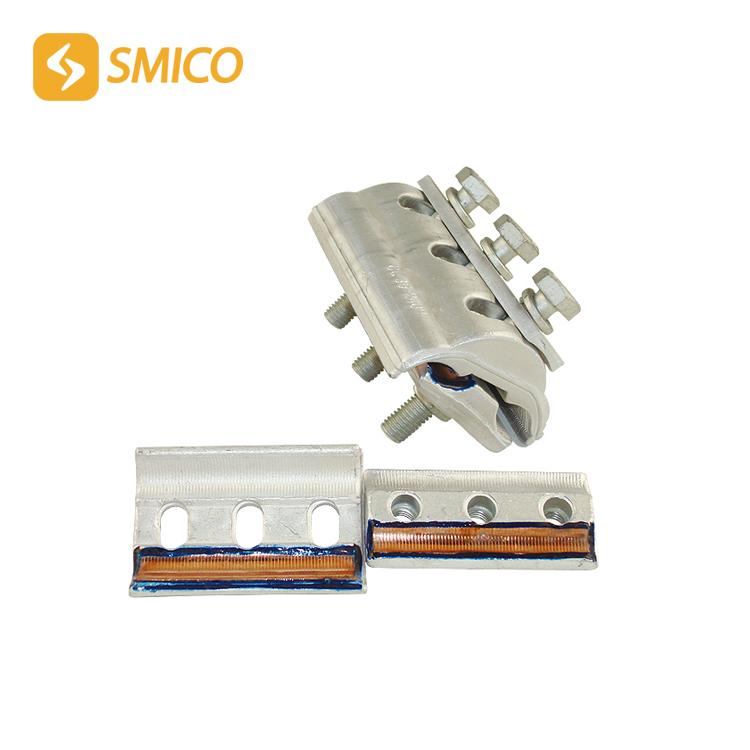

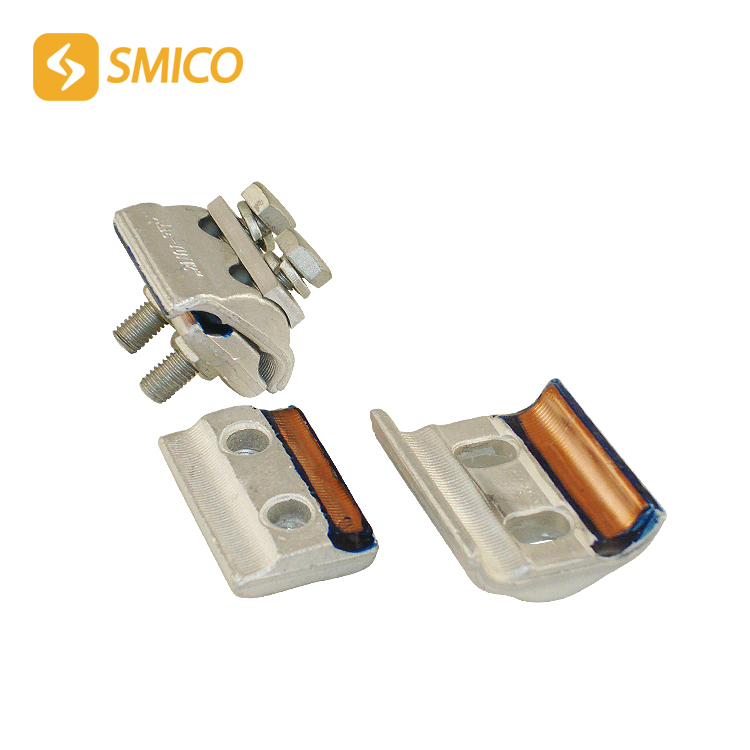

Aluminium copper and bimetallic type CAPG parallel groove clamp
- Model Number:
- CAPG
- Conductor Range:
- Cu 6-50 AI16-150
Aluminium copper and bimetallic type CAPG parallel groove clamp
Product information:
Parallel groove clamp AL is designed to connect two parallel bare aluminum conduc- tors in low voltage cable lines, service line system, street lightning and buildings.
Parallel groove clamp AL are made of high strength corrosion resistant aluminum alloy, galvanized steel bots, nuts and spring washers.
-
Exceed requirements according to VDE 0210 and VDE 0212
-
Pressure pad ensuring uniform pressure along the clamp
-
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact
-
Connector bodies made of corrosion resistant, high strength aluminium alloy AlMgSi1F32
-
Bolts and nuts made of hot dip galvanized steel 8.8
| Model | Conductor Cross-section (mm²) | Bolts |
| CAPG-A1 | Cu 6-50 AI 16-70 | 1XM8X40 |
| CAPG-A2 | Cu 10-95 AI 25-150 | 1XM8X45 |
| CAPG-B1 | Cu 6-50 AI 16-70 | 2XM8X45 |
| CAPG-B2 | Cu 10-95 AI 25-150 | 2XM8X50 |
| CAPG-B3 | Cu 25-185 AI 35-200 | 2XM10X60 |
| CAPG-C1 | Cu 6-50 AI 16-70 | 3XM8X45 |
| CAPG-C2 | Cu 10-95 AI 25-150 | 3XM8X50 |
| CAPG-C3 | Cu 25-185 AI 35-240 | 3XM10X60 |
| CAPG-C4 | Cu 35-240 AI 35-300 | 3XM10X70 |
