Parallel groove clamps for bare neutral messenger and grounding
- Product Name:
- Parallel groove clamps
- Model Number:
- APG
- Conductor Range:
- 16-240
- Brand:
- SMICO
- Supply Ability:
- 500000
- Bolt:
- 1/2/3
- Packaging Details:
- Export carton
- Material:
- Aluminium
Parallel groove clamps for bare neutral messenger and grounding
Product information:

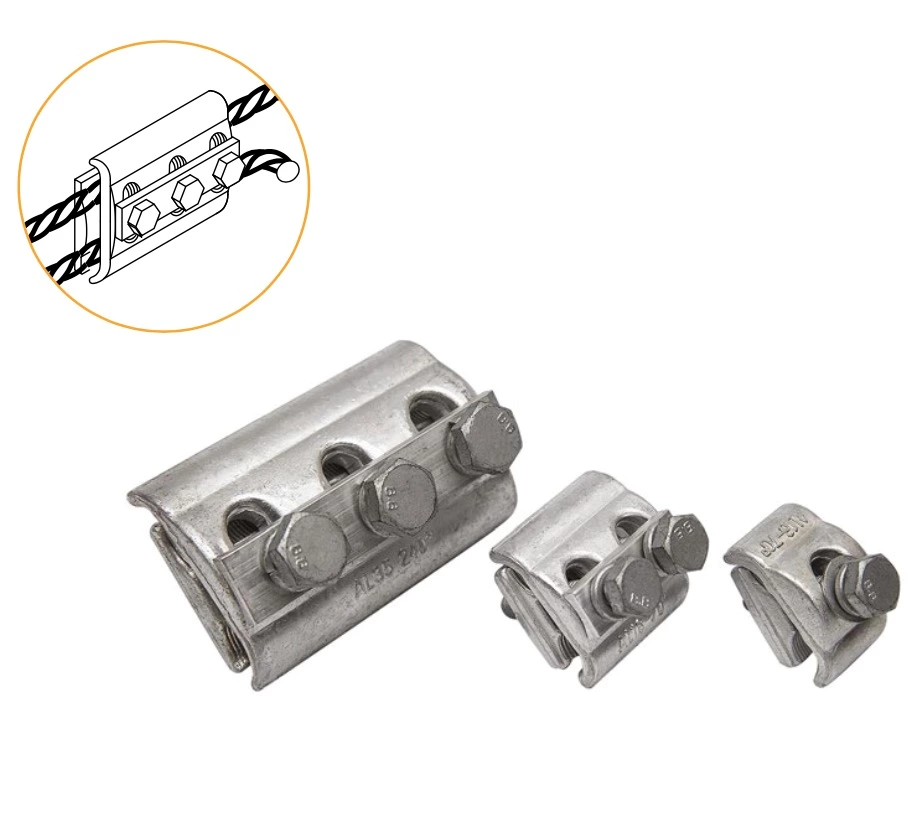

Parallel groove clamp AL is designed to connect two parallel bare aluminum conduc- tors in low voltage cable lines, service line system, street lightning and buildings.

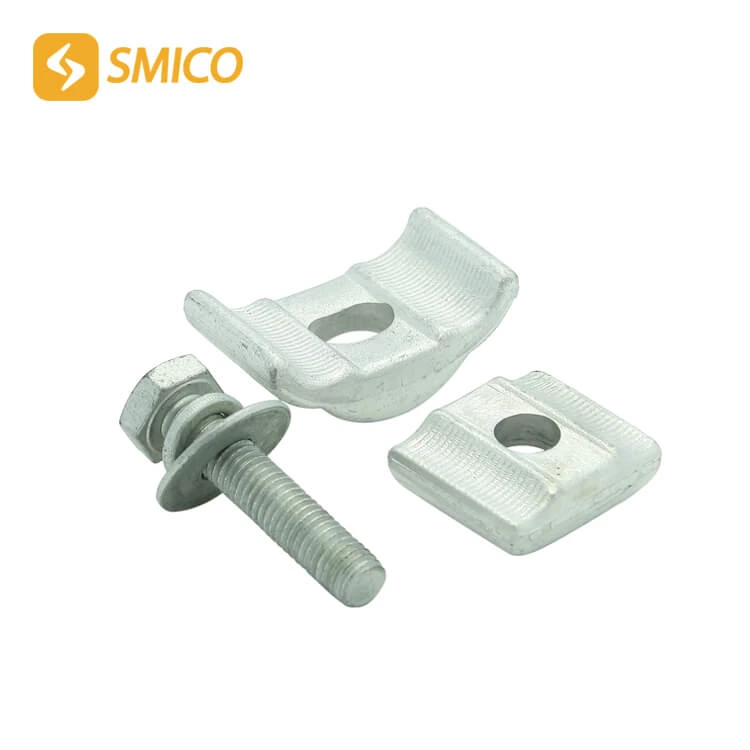

Parallel groove clamp AL are made of high strength corrosion resistant aluminum alloy, galvanized steel bots, nuts and spring washers.
FEATURES：
-
Exceed requirements according to VDE 0210 and VDE 0212
-
Pressure pad ensuring uniform pressure along the clamp
-
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact
-
Connector bodies made of corrosion resistant, high strength aluminium alloy AlMgSi1F32
-
Bolts and nuts made of hot dip galvanized steel 8.8
| Model | Conductor Cross-section (mm2) | Bolts |

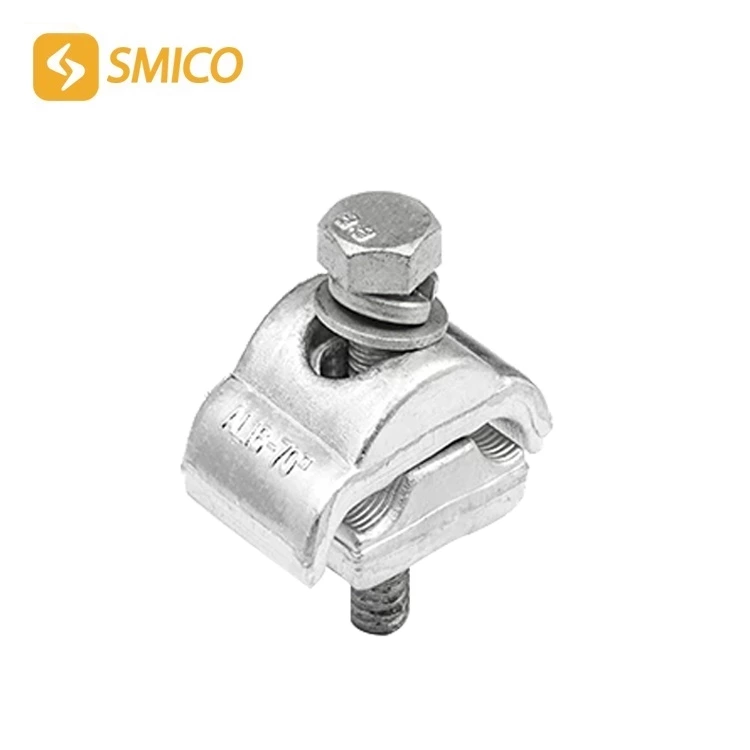

| APG-A1 | Al 16-70 | 1×M8×40 |
| APG-A2 | Al 25-150 | 1×M8×45 |
| APG-B1 | Al 16-35 | 2×M6×35 |
| APG-B2 | Al 16-70 | 2×M8×45 |
| APG-B3 | Al 16-150 | 2×M8×50 |
| APG-B4 | Al 25-185 | 2×M10×60 |
| APG-C1 | Al 16-70 | 3×M8×45 |
| APG-C2 | Al 16-150 | 3×M8×50 |
| APG-C3 | Al 25-240 | 3×M10×60 |
| APG-C4 | Al 35-300 | 3×M10×70 |
Product Advantages
- 1. Parallel groove clamps play a crucial role in electrical transmission and distribution systems. Here’s a simplified overview of their key features and benefits:
- 2. Corrosion Resistance: Made from materials like aluminum alloys and stainless steel, these clamps resist corrosion, ensuring long-lasting performance with minimal maintenance.
- 3. Strength and Resilience: Hot-forged aluminum alloy construction provides high mechanical strength and a smooth finish, enhancing both durability and resistance to the elements.
- 4. Galvanized Protection: Nuts and washer supporters are hot-dip galvanized, offering extra protection against rust and corrosion, especially in outdoor conditions.
- 5. Compatibility with Copper Conductors: Designed to work well with copper-based conductors, these clamps secure connections, reduce electrical losses, and improve system efficiency.
