NFC standard UV black pre-insulated sleeve MJPTN with full tension
- Model Number:
- MJPTN
- Conductor Range:
- 54.6mm²
- Standard:
- NFC 33021
- Supply Ability:
- 1000000/month
NFC standard UV black pre-insulated sleeve MJPTN with full tension
Application:

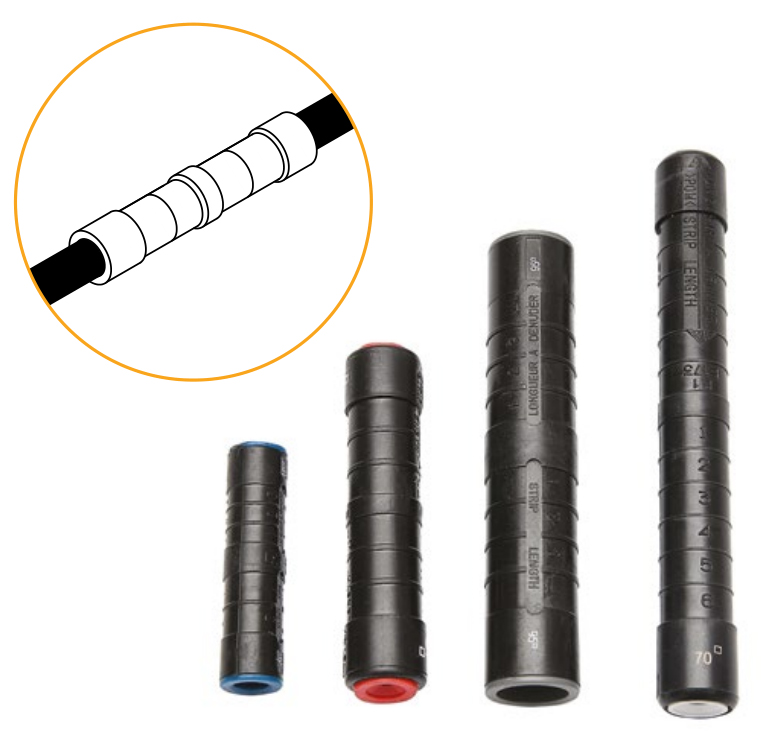

These pre-insulated sleeves MJPTN type are used to link together LV insulated overhead lines.
Description:
An aluminium (phase) or aluminium alloy (neutral) sleeve with a stop in the middle.
A black thermoplastic sealed with a flexible elastomer ring.
A neutral contact grease in the tube which improve the contact area and protect the aluminium against oxydation.
The crimping is realized on the plastic part according to the marks on the body of the sleeve.
Features:
MJPTN sleeves withstand the tests described in the French standard NFC 33021 and in ESI 43-14.
They are water resistant and pass the dieletric test of 6 kV in water.
They withstand : 50% of the mechanical phase breaking load.
100 % of the mechanical neutral messenger breaking load.
80% of the conductor load in the self supporting version (MJPTN type Alus).
A color code permits to check easily the cable size
-16mm² ➱blue
-25 mm² ➱orange
-35mm² ➱red
-50mm² ➱yellow
-54.6mm² ➱black
-70mm² ➱white
-95mm² ➱grey
-120mm² ➱pink
-150 mm ➱violet

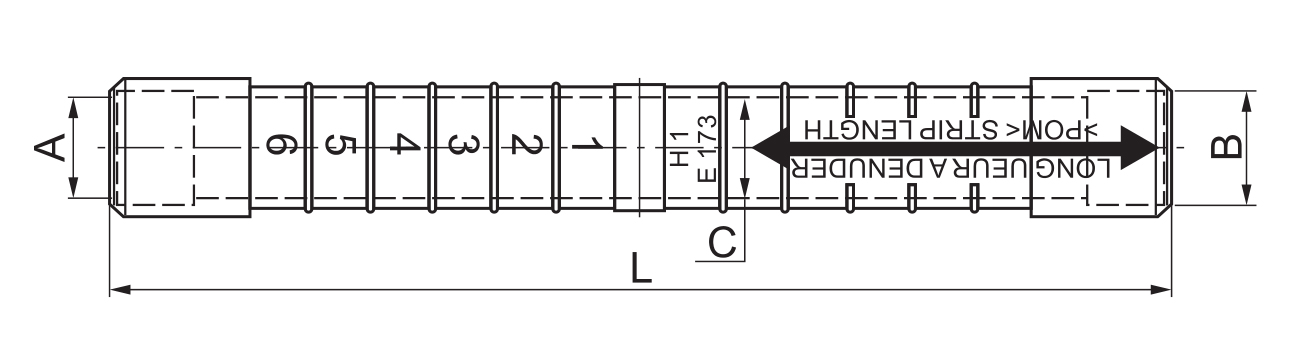

| Modle | Cable Size (mm²) | Plastic Sleeve Diameter (mm) | Length (mm) | |
| A | B | C | L | |
| MJPTN 54.6/54.6 | 54.6 | 54.6 | 20 | 172.5 |
| MJPTN 54.6/70 | 54.6 | 70 | 20 | 172.5 |
| MJPTN 70/70 | 70 | 70 | 20 | 172.5 |
| MJPTN 95/95D | 95 | 95D | 25 | 172.5 |
Crimping:
- Both conductors do not need to be inserted before crimping. You can insert one, crimp it, insert the second one and crimp it.
