Single Pole Distribution Blocks

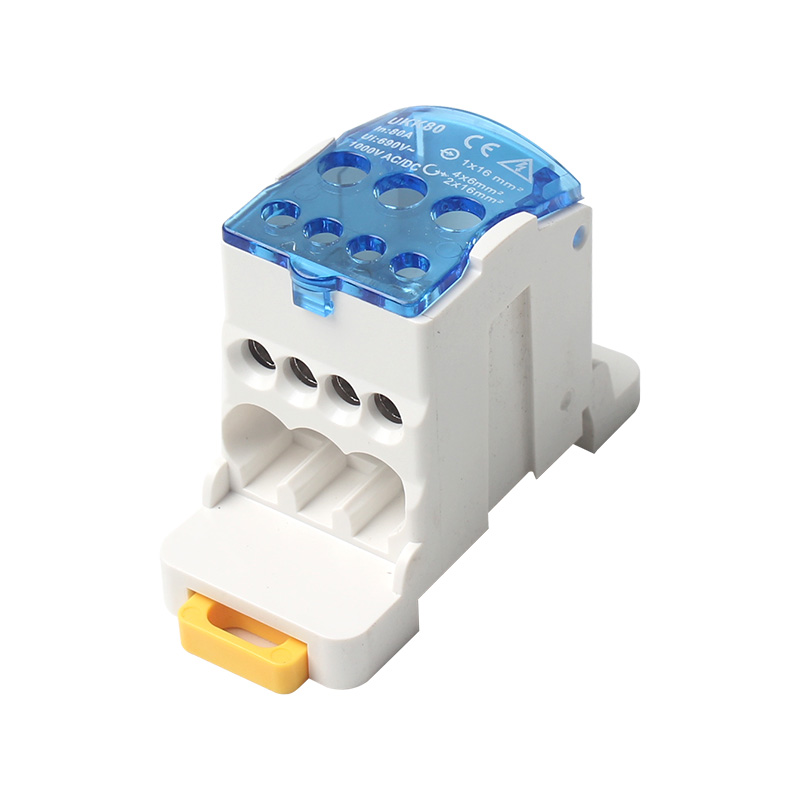

Din Rail Terminal Blocks UKK 80A

Model Number:
UKK-80
Conductor Range:
In 6-16mm² Out 2.5-6/2.5-16mm²
Standard:
IEC 60947-7-1
Voltage:
600V
Color:
Gray-Blue
Packaging Details:
Carton
Certification:
UL

UKK Series Single Pole Distribution Blocks

Material PA66
Grade of flame retardant V2
Metal Meterial Brass nickel plated




Din Rail Terminal Blocks UKK 80A

Features
Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
Screw retaining cover is hinged and removable
Design allows for visual inspection of conductor and confirmation of connection
Modular snap-together blocks for building multi-pole power blocks
Easily clips onto DIN rail or mounts to panel with screws
95% fill ratio
RoHS compliant
Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
Halogen free

Catalog Number

UKK-80

Din Rail Terminal Blocks UKK 80A



Certifications

Din Rail Terminal Blocks UKK 80A   Din Rail Terminal Blocks UKK 80A   Din Rail Terminal Blocks UKK 80A  Din Rail Terminal Blocks UKK 80A

Material

Size(mm) 70.85x30.05x45.5
Screw Zinc-Coated Steel
Conductor Tin-Coated Brass
Housing PA66/V-0
Cover PC

Electrical Date

Standards IEC 60947-7-1 UL1059
Voltage(V) 1000 600
Current(A) 80 85
Icw(KA) 3
Ipk(KA) 22

Wiring Data

Input A B      C
Connection Points x1
Torque(N.m) 3.5
Diameter(mm) 6.8
Metric Wire(mm²) 6-16
Imperial Wire(AWG) 16-4
Ootput A B     C
Connection Points x4 x2
Torque(N.m) 1.2 3.5
Diameter(mm) 4.5 6.8
Metric Wire(mm²) 2.5-6 2.5-16
Imperial Wire(AWG) 16-8 16-4

Diagrams

Din Rail Terminal Blocks UKK 80A

SINGLE POLE DIST. BLOCK, 85 A UL/CSA, CABLE LINE, 6 CABLES LOAD,
COPPER
