Single Pole Distribution Blocks

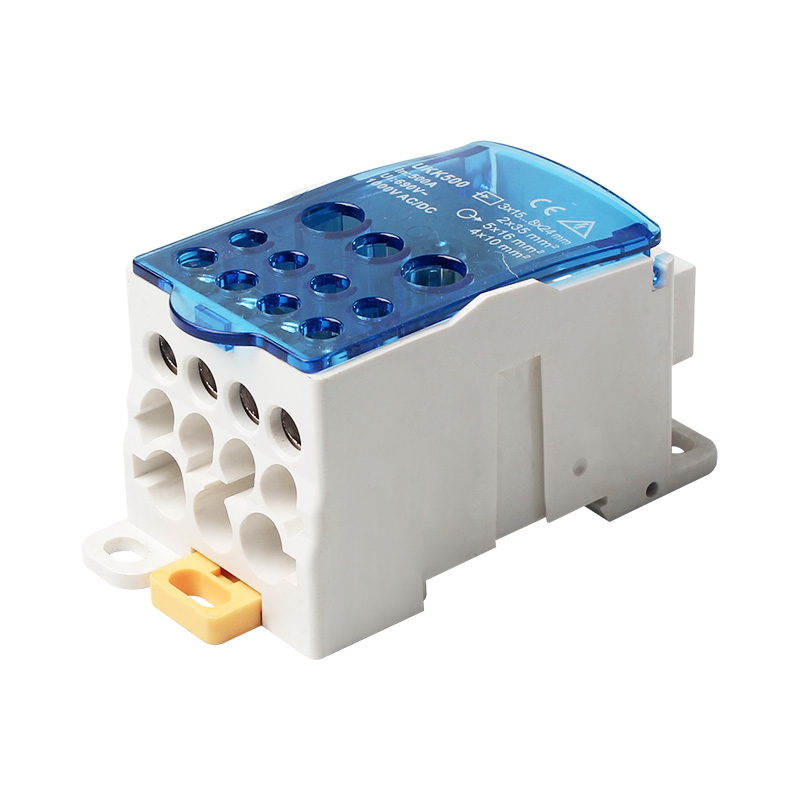

Terminal Block UKK-500A

Model Number:
UKK-500
Conductor Range:
In 4x15 .5x0 .8 to 8x24mm² Out 2x(6-35)mm²/5x(2.5-16)mm²/4x(2.5-10)mm²
Standard:
IEC 60947-7-1
Bolt:
Zinc Coated Steel
Voltage:
600V
Color:
Gray-Blue
Packaging Details:
Carton
Certification:
UL

UKK Series Single Pole Distribution Blocks

Material PA66
Grade of flame retardant V2
Metal Meterial Brass nickel plated




Terminal Block UKK-500A

Features
Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
Screw retaining cover is hinged and removable
Design allows for visual inspection of conductor and confirmation of connection
Modular snap-together blocks for building multi-pole power blocks
Easily clips onto DIN rail or mounts to panel with screws
95% fill ratio
RoHS compliant
Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
Halogen free

Terminal Block UKK-500A

Catalog Number

UKK-500

Terminal Block UKK-500A



Certifications

Terminal Block UKK-500A   Terminal Block UKK-500A   Terminal Block UKK-500A  Terminal Block UKK-500A

Material

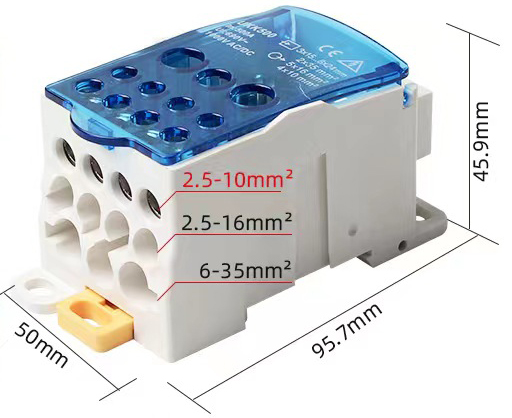

Size(mm) 96.2x50x49.30
Screw Zinc-Coated Steel
Conductor Tin-Coated Brass
Housing PA66/V-0
Cover PC

Electrical Date

Standards IEC 60947-7-1 UL1059
Voltage(V) 1000 600
Current(A) 500 355
Icw(KA) 24.5
Ipk(KA) 51

Wiring Data

Input A B      C
Connection Points x1
Torque(N.m) 10
Diameter(mm) /
Metric Wire(mm²) 8x24
Imperial Wire(AWG) 3/0-400kcmil
Ootput A B  C
Connection Points x2 x5 x4
Torque(N.m) 4.4 2.7 2.7
Diameter(mm) 9 6.8 6.1
Metric Wire(mm²) 6-35 2.5-16 2.5-10
Imperial Wire(AWG) 10-1 10-4 10-6

Diagrams

Terminal Block UKK-500A

SINGLE POLE DIST. BLOCK, 85 A UL/CSA, CABLE LINE, 6 CABLES LOAD,
COPPER
