Single Pole Distribution Blocks

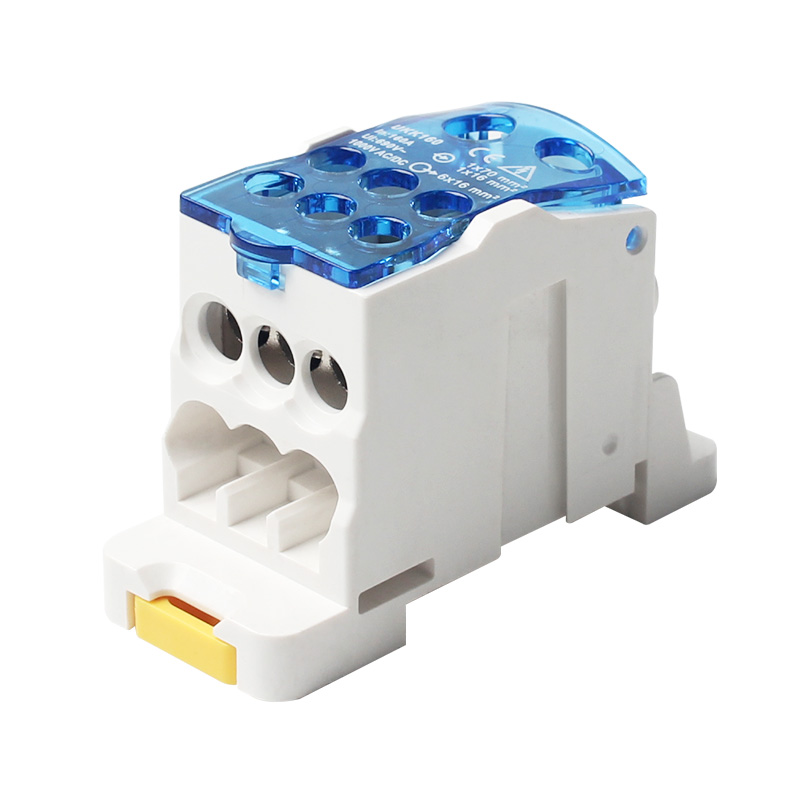

Terminal Blocks For Din Rail UKK-160

Model Number:
UKK-160
Conductor Range:
In 1x(10-70)mm² Out 7x(2.5-16)mm²
Standard:
IEC 60947-7-1
Bolt:
Zinc Coated Steel
Voltage:
600V
Color:
Gray-Blue
Packaging Details:
Carton
Certification:
UL

UKK Series Single Pole Distribution Blocks

Material PA66
Grade of flame retardant V2
Metal Meterial Brass nickel plated




Terminal Blocks For Din Rail UKK-160

Features
Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
Screw retaining cover is hinged and removable
Design allows for visual inspection of conductor and confirmation of connection
Modular snap-together blocks for building multi-pole power blocks
Easily clips onto DIN rail or mounts to panel with screws
95% fill ratio
RoHS compliant
Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
Halogen free

Terminal Blocks For Din Rail UKK-160

Catalog Number

UKK-160

Terminal Blocks For Din Rail UKK-160



Certifications

Terminal Blocks For Din Rail UKK-160   Terminal Blocks For Din Rail UKK-160   Terminal Blocks For Din Rail UKK-160  Terminal Blocks For Din Rail UKK-160

Material

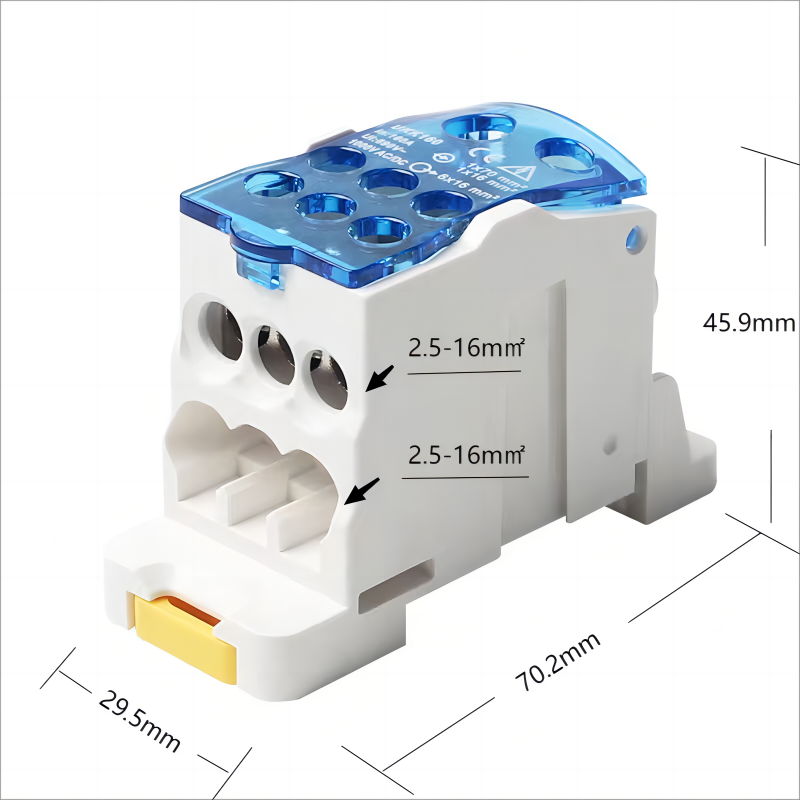

Size(mm) 70.5x30.93x45.5
Screw Zinc-Coated Steel
Conductor Tin-Coated Brass
Housing PA66/V-0
Cover PC

Electrical Date

Standards IEC 60947-7-1 UL1059
Voltage(V) 1000 600
Current(A) 160 200
Icw(KA) 11.8
Ipk(KA) 30

Wiring Data

Input A B      C
Connection Points x1
Torque(N.m) 8.5
Diameter(mm) 12.3
Metric Wire(mm²) 10-70
Imperial Wire(AWG) 8-3/0
Ootput A B     C
Connection Points x6 x1
Torque(N.m) 3.5 3.5
Diameter(mm) 6.8 6.8
Metric Wire(mm²) 2.5-6 6-16
Imperial Wire(AWG) 14-4 14-2

Diagrams

Terminal Blocks For Din Rail UKK-160

SINGLE POLE DIST. BLOCK, 85 A UL/CSA, CABLE LINE, 6 CABLES LOAD,
