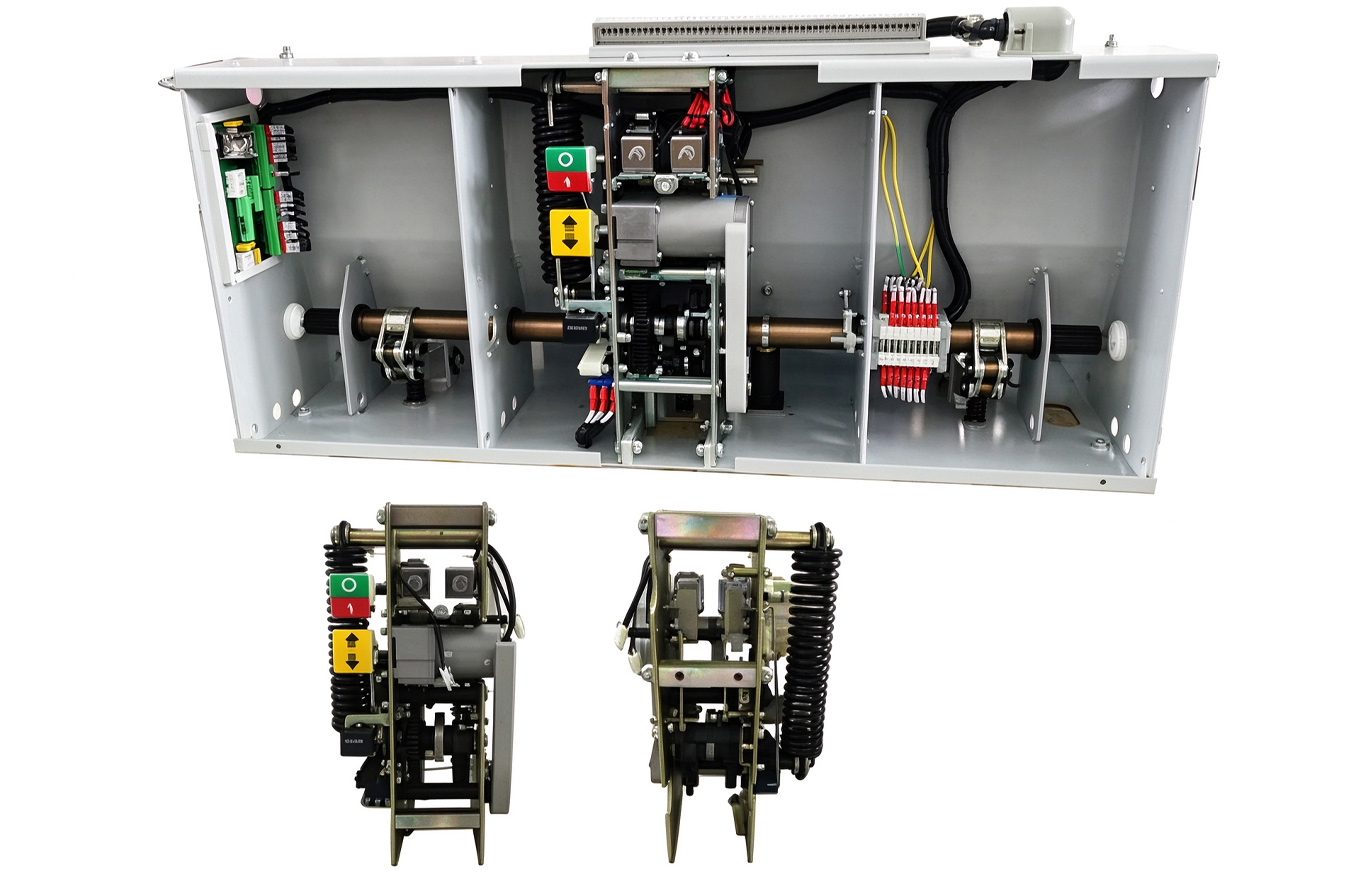

CT-VS1-MOP Spring Operating Mechanism
CT-VS1-MOP spring motor drive operating mechanism, modular design, independence mounting, will be used in VS1-12kV, VS1-24kV, ZN85-36kV
and indoor medium voltage vacuum circuit breaker with equivalent closing power. Its performances can meet requirements of IEC62271-100,
GB1984 AC Medium Voltage Circuit Breaker and the product's Technical Conditions.
CT-VS1-MOP were motor operating mechanism functions including motor or manual energy-storage; electromagnet or manual closing/opening;
overcurrent protection, to realize overcurrent protection, the controller holds functions of surge current, time delay and fast breaking.
Technical Parameter
1.Energy storage motor adopt unidirectional permanent DC motor, technical parameter as Table:
| Item | ZYJ220-53-216 | ZYJ110-53-216 | YJ220-53-216 | YJ110-53-216 |
| Rated operate voltage (V) | DC220 | DC110 | DC220 | DC110 |
| Rated power (W) | 40 | 40 | 40 | 40 |
| Normal operating voltage range (V) | 85%-110% | 85%-110% | 85%-110% | 85%-110% |
| Rated operating current (A) | 0.5 | 1.0 | 0.5 | 1.0 |
| Motor energy storage time (S) | ≤8 | ≤8 | ≤8 | ≤8 |
2.Closing/Opening electromagnet adopt solenoid electromagnet, technical parameter as Table:
| Rated operate voltage (V) | AC220 | AC110 | DC220 | DC110 |
| Rated operating current (A) | 1.36 | 3.6 | 2 | 5.3 |
| Rated power (W) | <300 | <396 | <440 | <583 |
| Coil resistance at 20°C (Ω） | 54 | 10.3 | 106 | 20.5 |
| Normal operating voltage range | Open at 65%~120% rated operate voltage; do not open when less than 30% rated operate voltage | |||
| Close at 85%~110% rated operate voltage; do not close when less than 30% rated operate voltage | ||||
3.Manual energy storage is operated by the handle allocated with the mechanism, the operating force less than 100 (N.m)
4.Mechanism output angle 40 degree.

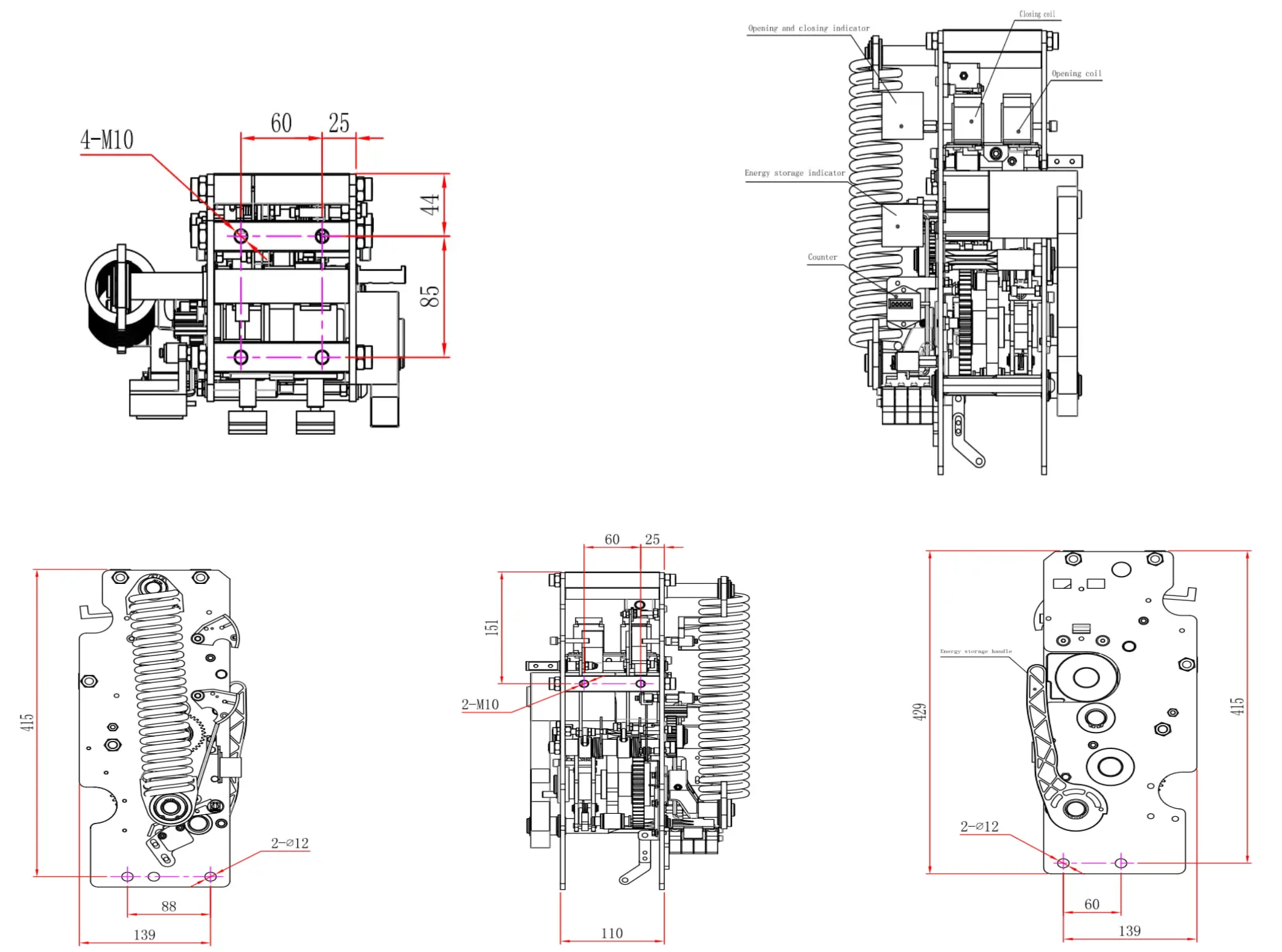

Outline and installation dimensions
